Bilan HVAC

Features Bilan HVAC

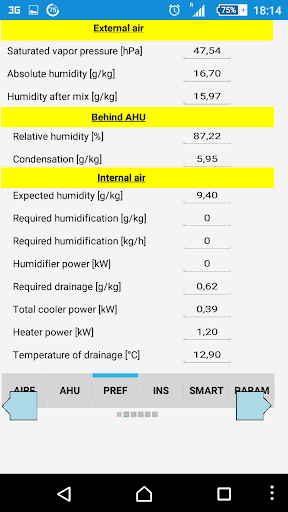

NEW VERSION!Application designed to assist the Engineer on site and in the office.All-In-One - ventilation, heating, potable water.COMMERCIAL version.Version for Tablets available at Bilan HVAC Simple Differences between the SIMPLE and the standard version at the bottom of the page.Illustrations show tabs additional to Simple!Basic features:Tab VENTILATION Tab STREAMS For a given dimension of the flow duct selection depending on the speed or noiseThe term for this duct: - Air flow resistance, - Speed, - Noise, - Selection of the size of the duct so as not to exceed the speed condition - only Standard, - Selection of the size of the duct so as not to exceed the noise condition - only Standard, Tab CHANGE OF CONTROL - only the PRO The full calculation of the change of ventilation, endearing:- The power of the heater,- The power of the radiator overt,- Latent cooling power,- Moisture condensation,- The required power-heater.

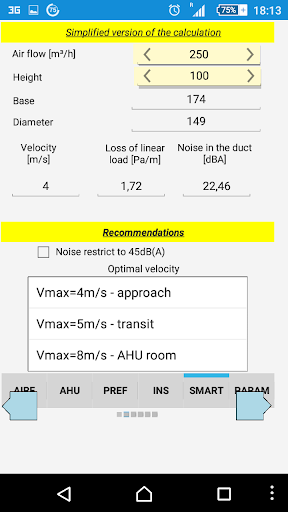

Tab INSULATION - only the PRO Determination of heat loss and temperature drop in the duct Tab SMARTHydraulics calculations carried out in a simplified way, giving the minimum amount of data, and at the same result obtained in the form of a rapid use of the site.
In the future there will appear other conversion.
HEATING * Hydraulics:- Conversion under a stream of liquid to various media.- Finishing panels pipe diameters based on the criterion of speed or pressure.* Finishing panels regulating valve on the basis of the authority or the required resistance.* Calculations of heat loss through the insulation - only Standard.* Sizing WTP, and the translation of hardness.* Calculations surface and pipe capacity - only Standard.
WATER * Hydraulics system.* Devices and fire hydrants.* Pipe insulation - only Standard.* Expansion vessel.* Calculations hot tap water tank and the heat-up.Tab CONVERIONS Tab ACOUSTICS - only the PRO The conversion of acoustic noise dB per dB (A) and NR curves.
Tab UNITS Exchange units:- length, - mass, - flow, - pressure,- energy.In SIMPLE - only number "1", with 2 decimal placeIn addition, version Standard with respect to Simple is characterized by:- The possibility to use commercial - The lack of an Internet connection,- Remembering user settings- Automatic change of scale for ANY application after starting,- The lack of advertising, VENTILATION - The choice duct size as not to exceed the speed condition,- The choice duct size as not to exceed the noise condition,- Smart tab, HEATING - Selecting any of the pipe.- Pipe material - in addition:* HDPE SDR 17* PERT-Alu-PERT* PEX* Crimp systems (steel / stainless steel / copper)* Stainless high- Change roughness.- Additional Factors - glycols,- Calculation of pipe insulation.
CONVERSION - Translating for any input,- Conversion of any number to the nearest 6th decimal place.Version Pro with respect to Standard is characterized by: VENTILATION - Transformation IX central.- Calculation of the duct insulation.- Calculations and acoustic conversion.
HEATING - Any agent.- Any diameter.- Additional fluids - thermal oils.
